Create document layout

Overview

To use the Abbyy connector you need to define the document layout that you want to scan. To do that, Abbyy provides an application to define the layouts.

Abbyy has the flexibility to extract information from structured, semi-structured or unstructured documents. The most common scenario are semi-structured documents, where you have some static variables, but some others can change, for example an invoice, where the number of products and the information in each invoice can change.

Before you Start

You need to have an Abbyy licensed server. Additionally, to start creating layouts, you need access to Abbyy FlexiLayout Studio 12.

It is important to have a sample of the document from which you want to extract information using Abbyy.

Note:
This initial guide helps you to start using the Abbyy connector. However, you can look for other document definition training options. See Field Extraction Training.

Setup Steps

To configure your document layout follow these steps:

1. Create an image or document layout

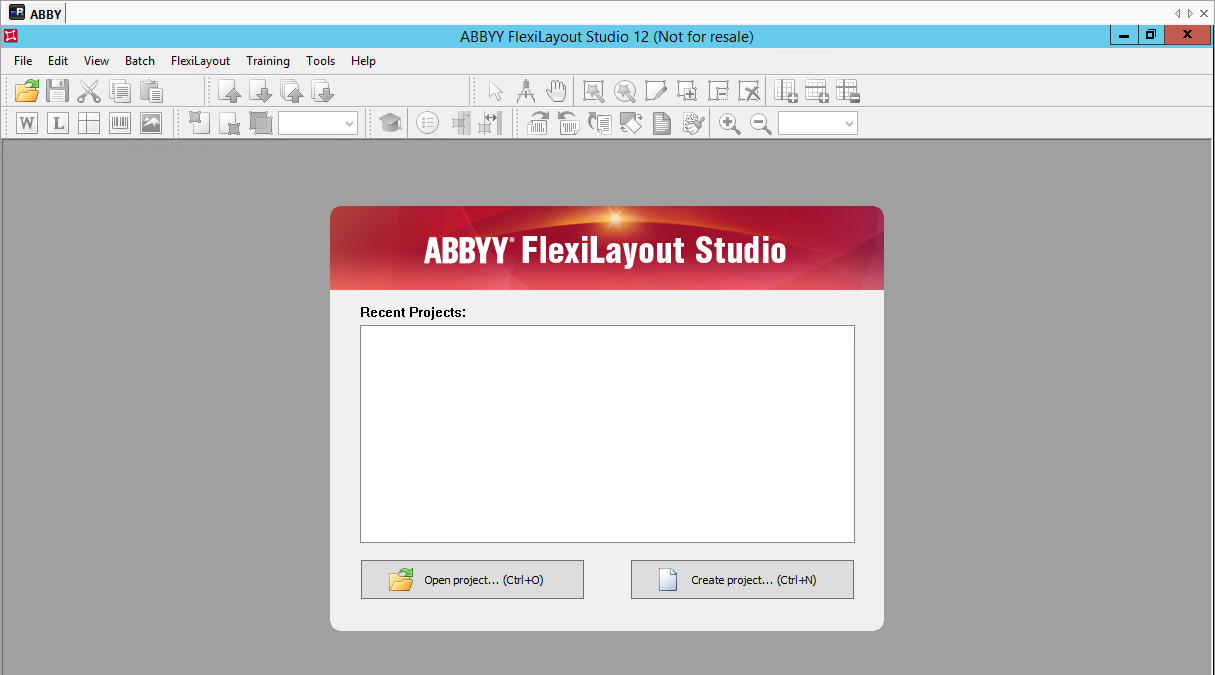

   Open the FlexiLayout Studio and create a new project. This is a layout project.

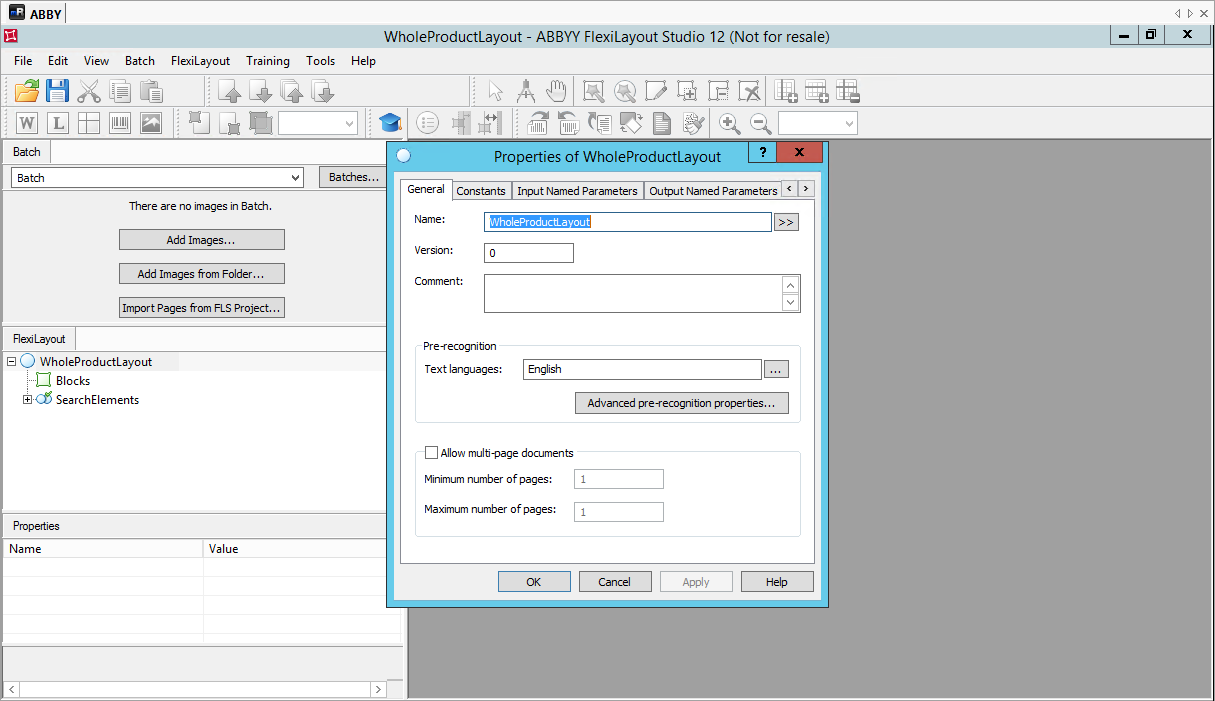

   Define the project's general properties such as the name and language. If the document template has multiple pages, you can define this number.

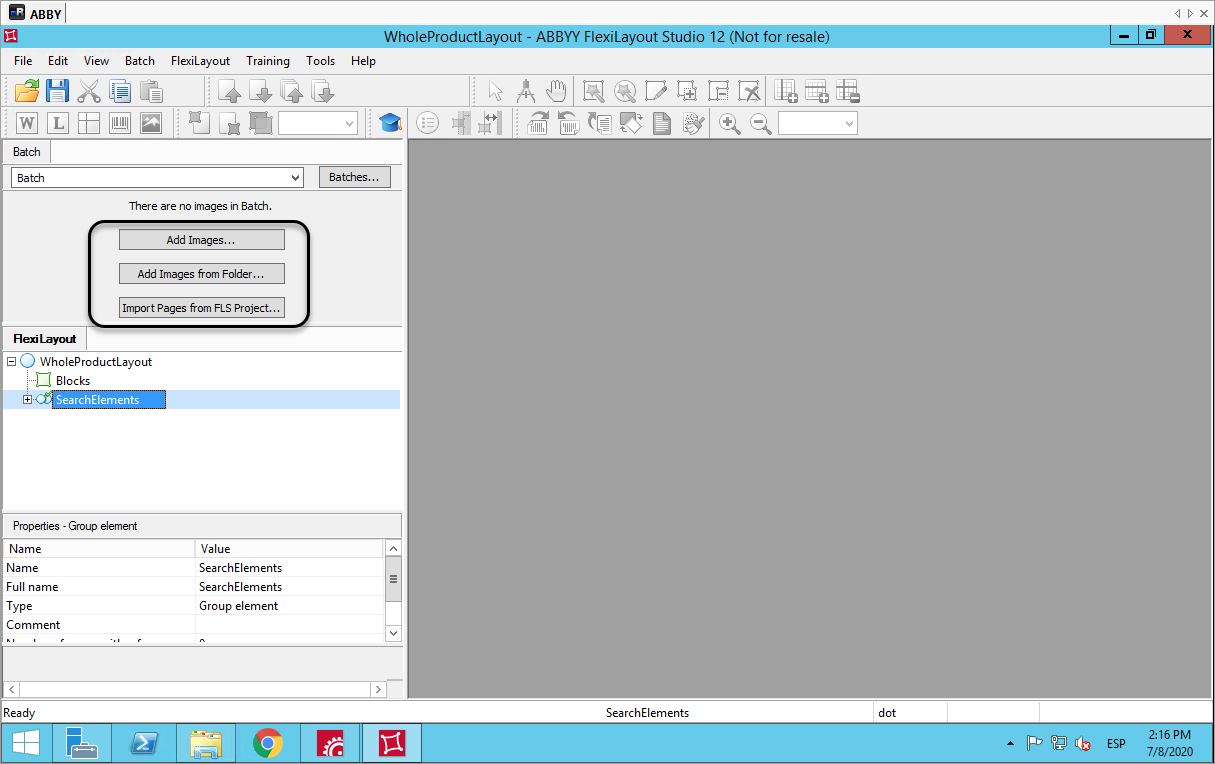

2. Upload an image of the document, or a document sample in PDF format.

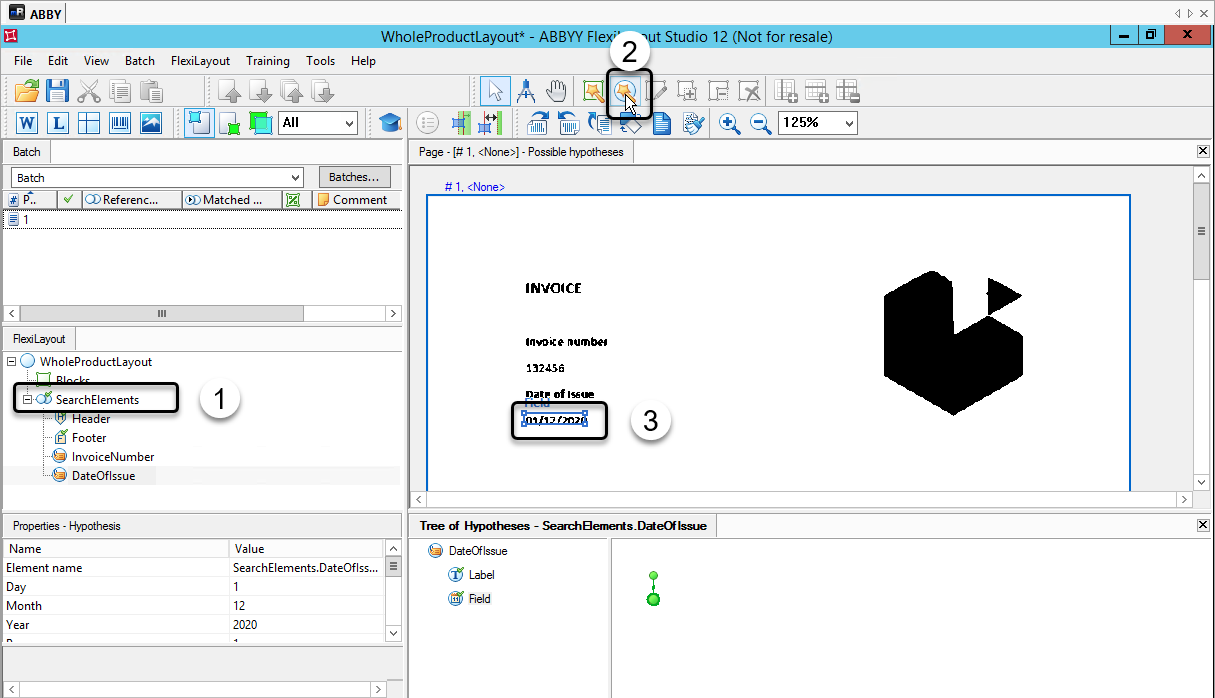

3. Define the Search Elements
   The Search Elements are regions where Abbyy looks for information, either a label, a reference, or a value that you want to extract information from. Select the searchElements node on the left-hand side, click the Create Element icon, and drag and drop over the element you want to search:

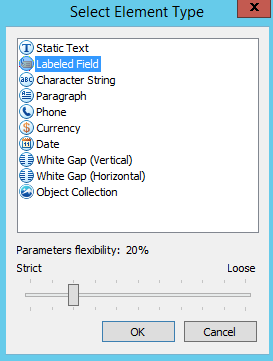

4. Select the element type
   If the label of the value is displayed in the document, select Labeled Field:

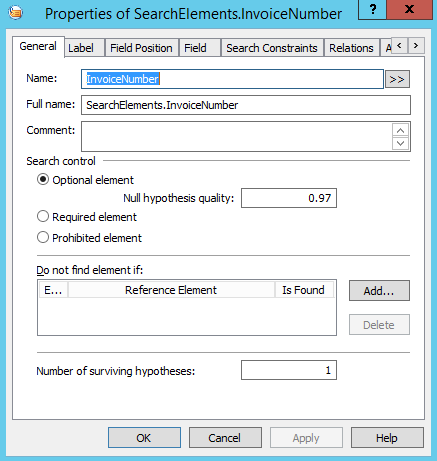

5. Provide the element name:

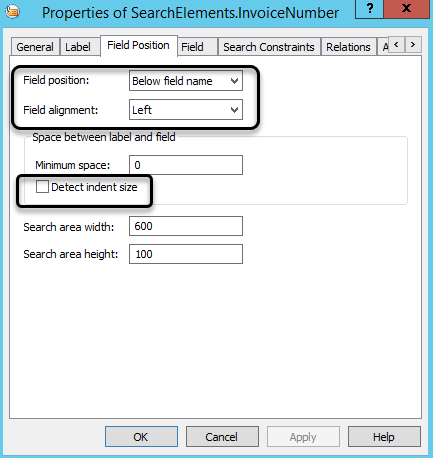

6. Define the location of the label
   If the element is labeled, you need to define the location of the label. Open the Field Position tab and select the Field Position:

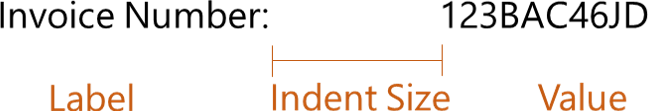

7. Select the Detect Indent Size option
   If you want Abbyy to detect the size automatically:

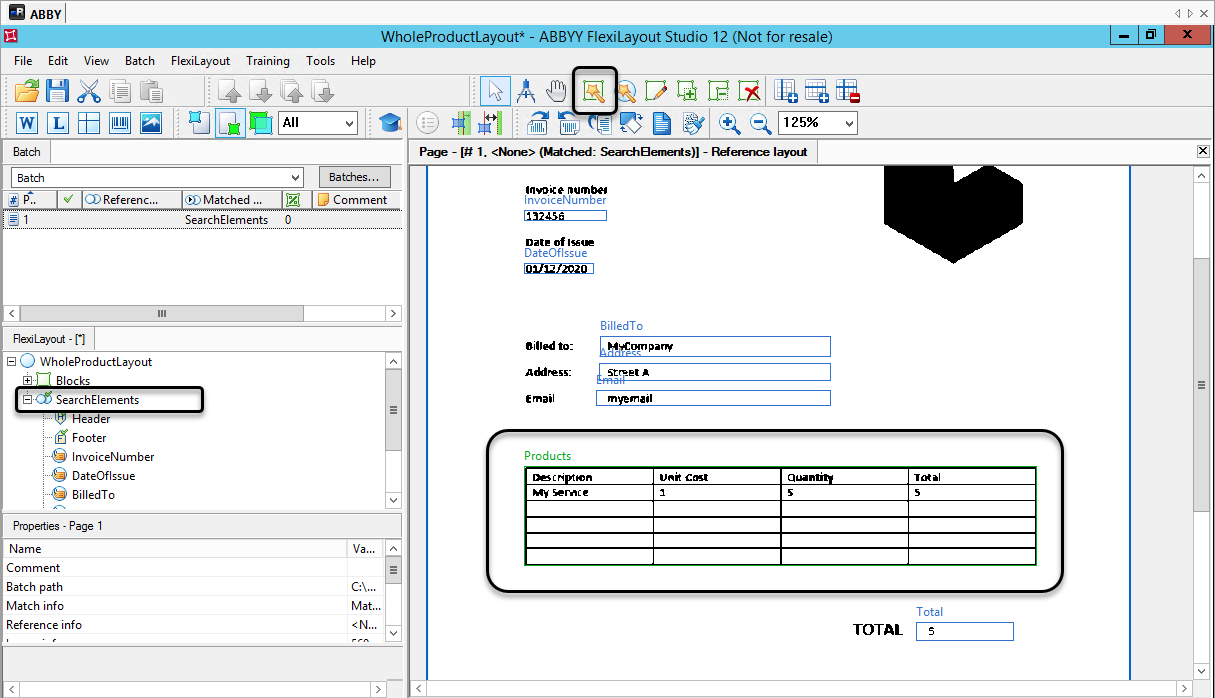

8. For documents or images with tables
   If your document or image contains tables, select the searchElement node. Click the Create Block icon, and drag and drop upon the table:

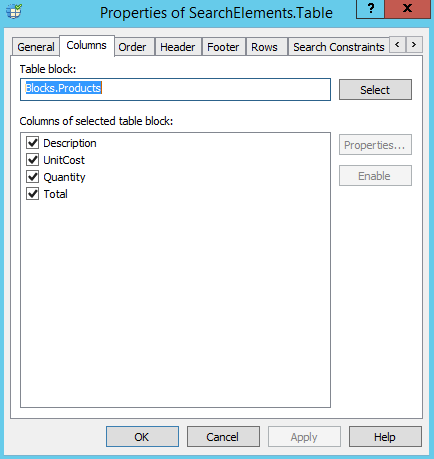

9. Define the columns
   After providing the general properties, define the columns:



10. Define the Blocks

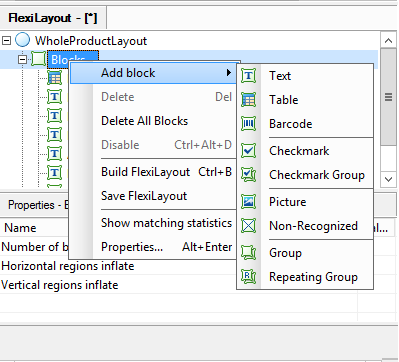

    Blocks are the set of information extracted from the image or document. For each search element, you can define a block; right-click the Block node and select Add Block, then select the type of block you want to extract.

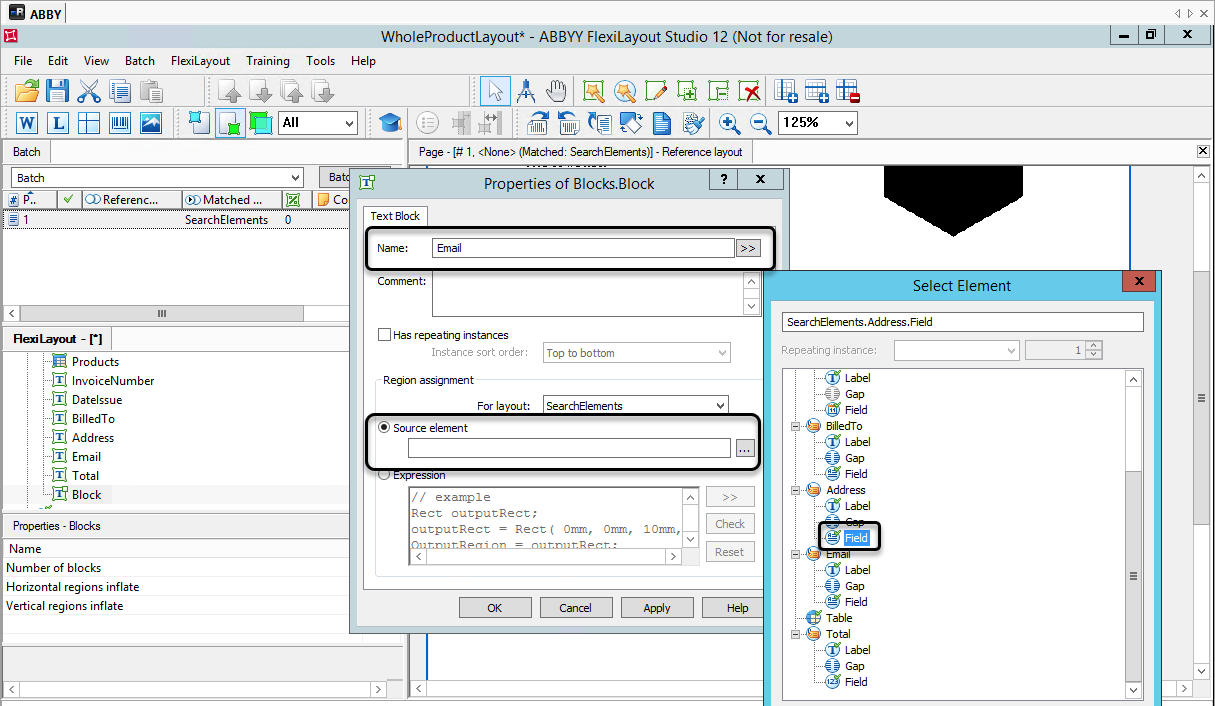

11. Provide the Name, Source element, and Field option for each block
    For each block, provide the Name, the Source element (which is the search element), and the Field option if you want to extract the value:



12. Save and export the layout project
    Once you complete the creation of all the blocks, you can save the layout project and export it. Click the File tab in the top ribbon and select Export. Save the layout file in a folder that you can access later.

Now you can continue to setup the Abbyy project.
