Obtain Case object

Overview​

Bizagi offers a function where you can obtain the case object without the need of context. To do so, use the following function, this will return a case object type with the information you need:

CHelper.getCaseById(CaseId)

The following attributes are needed:

  • CaseId: Case Id

You can perform the actions described on Get information from the current case on the returned object.

Example​

On this example we'll be using the getCaseById function to obtain a Sub-Process's state.

To do so, we'll first obtain the list of Sub-Process Id's as an array and from those Id's we'll get each Sub-Process's state.

The expression would be as follows:

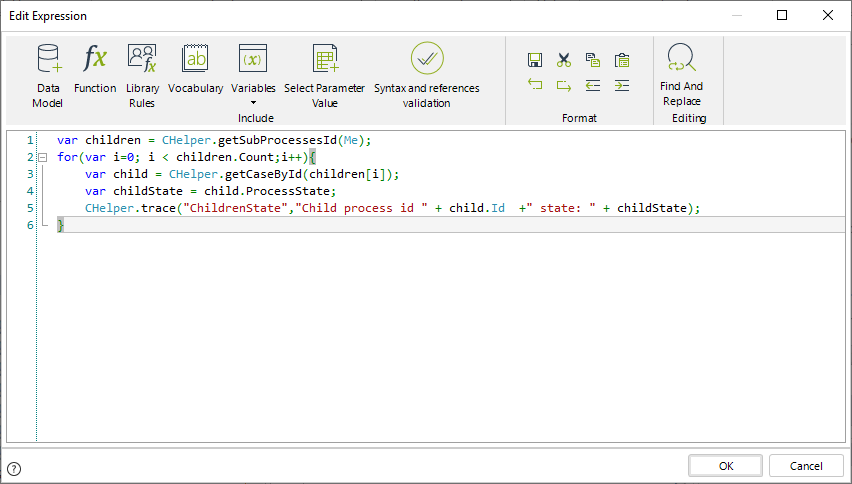

getProcessByID_01

The code shown in the image is:

var children = CHelper.getSubProcessesId(Me);
for(var i=0; i < children.Count;i++){
  var child = CHelper.getCaseById(children[i]);
  var childState = child.ProcessState;
  CHelper.trace("ChildrenState","Child process id " + child.Id +" state: " + childState);
}
