Module

Overview​

This function returns the remainder after a number is divided by a divisor.

**CHelper.Math.Module(Number,Divisor)**

The parameters of this function can be defined as Xpaths, variables, or numbers.

Considerations​

  • Input parameters must be integers.
  • The supported attribute type to use as input XPath parameter (or Xpaths stored in variables) is integer.
  • The function returns an error if the Divisor is equal to 0.
  • Use the IsNaN function to validate the parameters used are numbers.

Example​

Suppose in a Process it has to be evaluated if a number is pair. To do so you can use the Module function using the number 2 as the divisor. If the result obtained is equal to 0 then the number is pair.

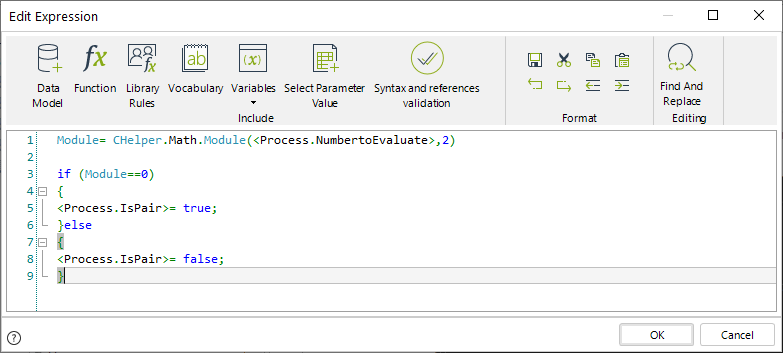

Math19

//Obtain the Module of the number using 2 as divisor

Module= CHelper.Math.Module(<Process.NumbertoEvaluate>,2)

//Evaluate if the result is equal to 0

if (Module==0)

{

//If so the number is pair

<Process.IsPair>= true;

}else

{

//If not the number is not pair

<Process.IsPair>= false;

}
