Exporting to Visio

Overview

Bizagi Modeler allows you to export your diagrams to Microsoft Visio using the BPMN 2.0 notation shapes.

Bizagi supports Visio 2003, 2007, and 2010.

Note: Make sure you have Microsoft Visio installed when you export your diagrams.

To export your diagrams, follow the steps below:

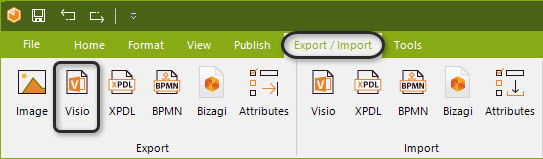

1. On the Export/Import tab, in the Export group, click Visio.

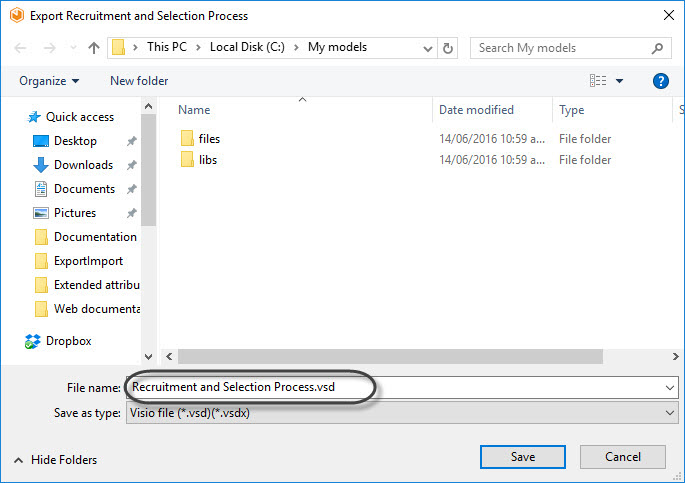

2. Specify the appropriate folder to save your Visio file. This folder needs Read and Write permissions.

Click the Save button.

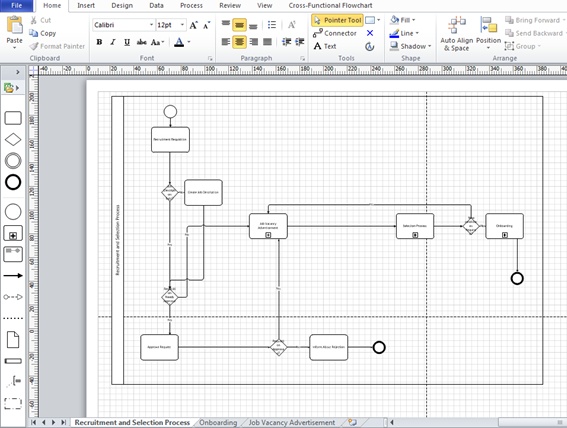

Once the process has been exported to Visio, you will be able to edit and manage the diagram using the Visio BPMN stencil.
