Bizagi Server Configuration: Windows 8.1 or Windows 8

Overview​

Bizagi processes require a web server for execution. Microsoft Internet Information Services (IIS) is supported as the web server for running Bizagi processes on a .NET platform, as detailed in the IIS configuration section.

When using Bizagi Studio, ensure that IIS is installed and configured before creating a new project.

Note:​

  • Windows 8.1 includes IIS version 8.5.
  • Windows 8 includes IIS version 8.0.
  • This installation may not be included by default in these operating systems.

Installing IIS and its Components​

To install IIS and activate the required components, follow these steps:

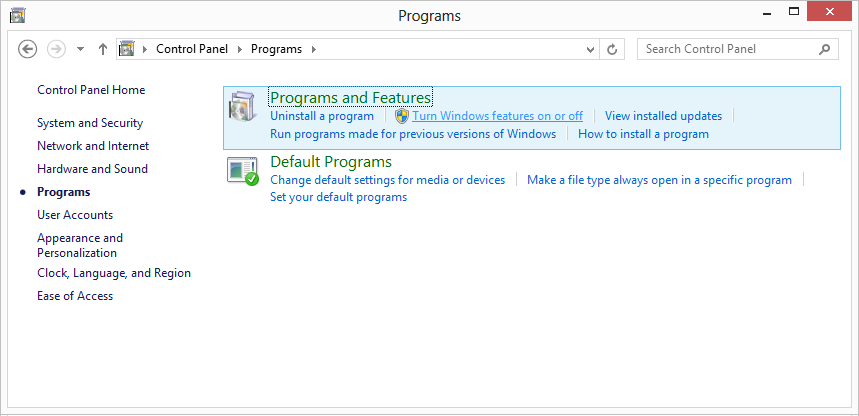

  1. Go to Control Panel > Programs > Programs and Features and click on Turn Windows features on or off. Installing IIS and its components

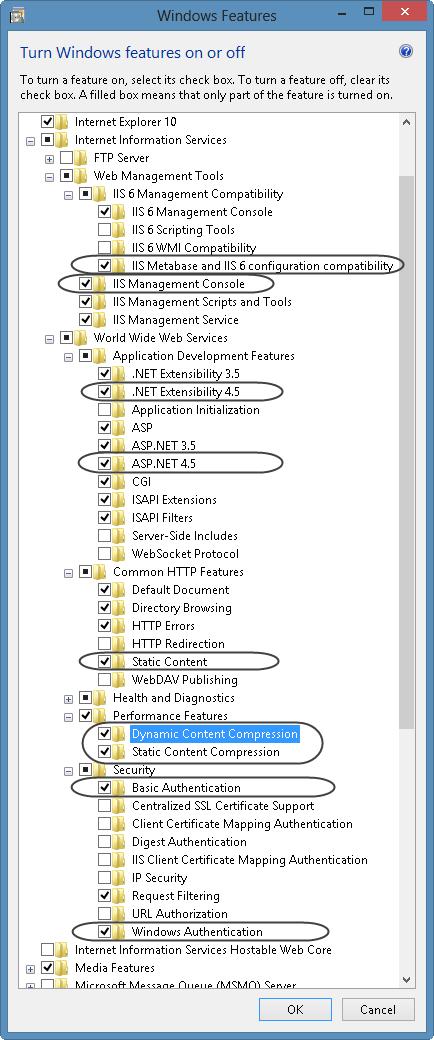

  2. Ensure that the checkboxes for the required IIS components are marked. Some checkboxes are pre-marked by default and must remain unchanged as part of the required configuration. Installing IIS and its components
  3. Click OK to complete the configuration. The process may take a minute or two, and a reboot of the machine might be required.

Verifying IIS and the Default Web Site​

After installing IIS, verify that the Default Web site is available to create Bizagi projects:

  1. Open IIS Manager by typing inetmgr or by accessing Internet Information Services (IIS) Manager from the Administrative Tools folder (Control Panel > System and Security). Installing IIS and its components
  2. In IIS Manager, ensure that the Default Web site is listed under Sites and is in a started status. Installing IIS and its components

At this point, IIS is correctly configured, and you are ready to create new Bizagi projects.
